Description

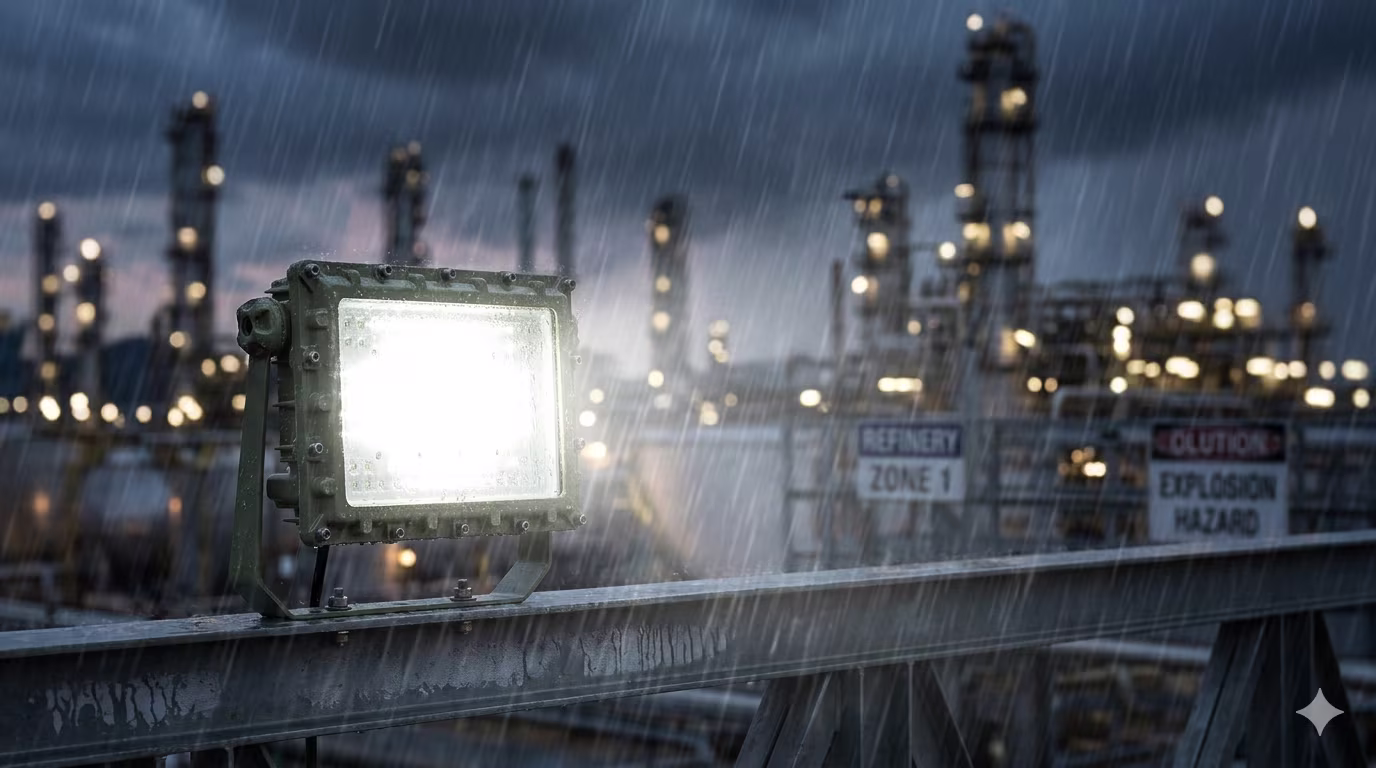

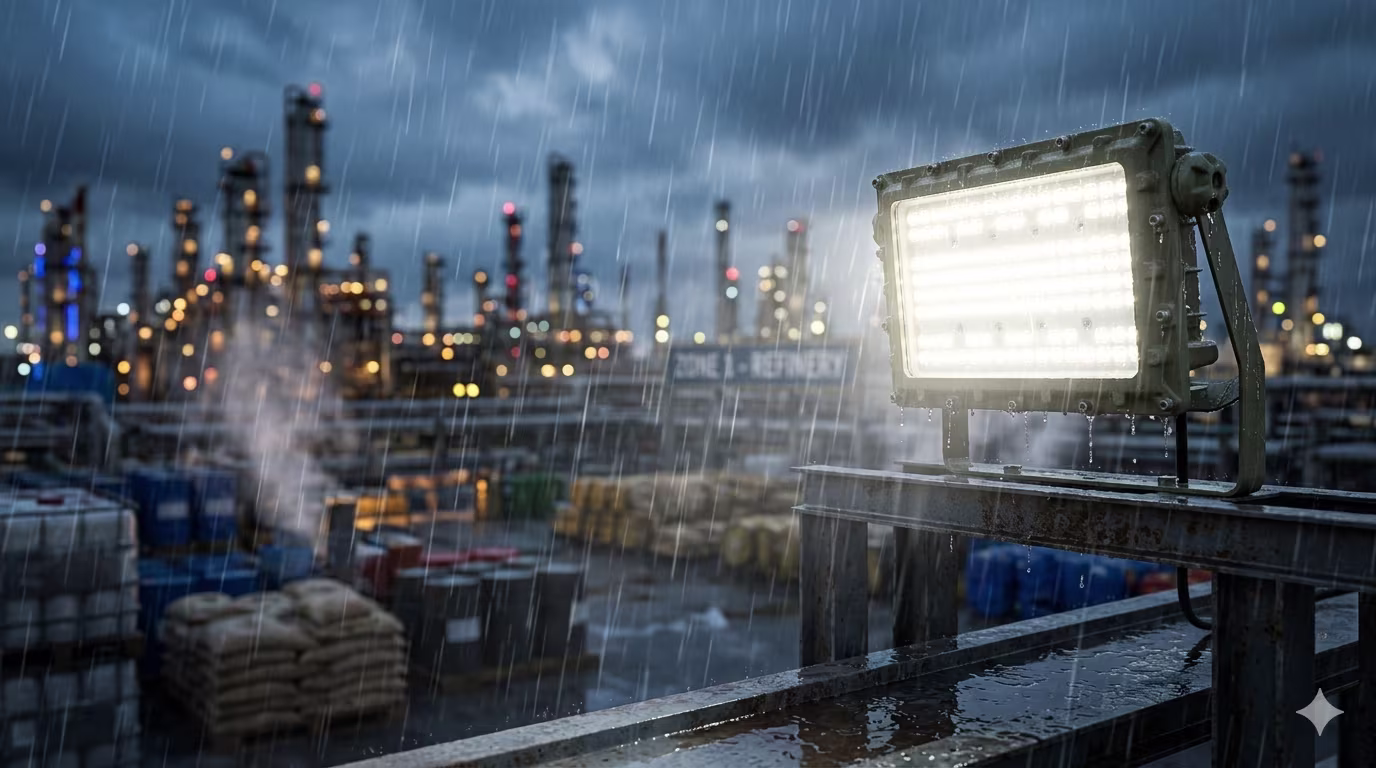

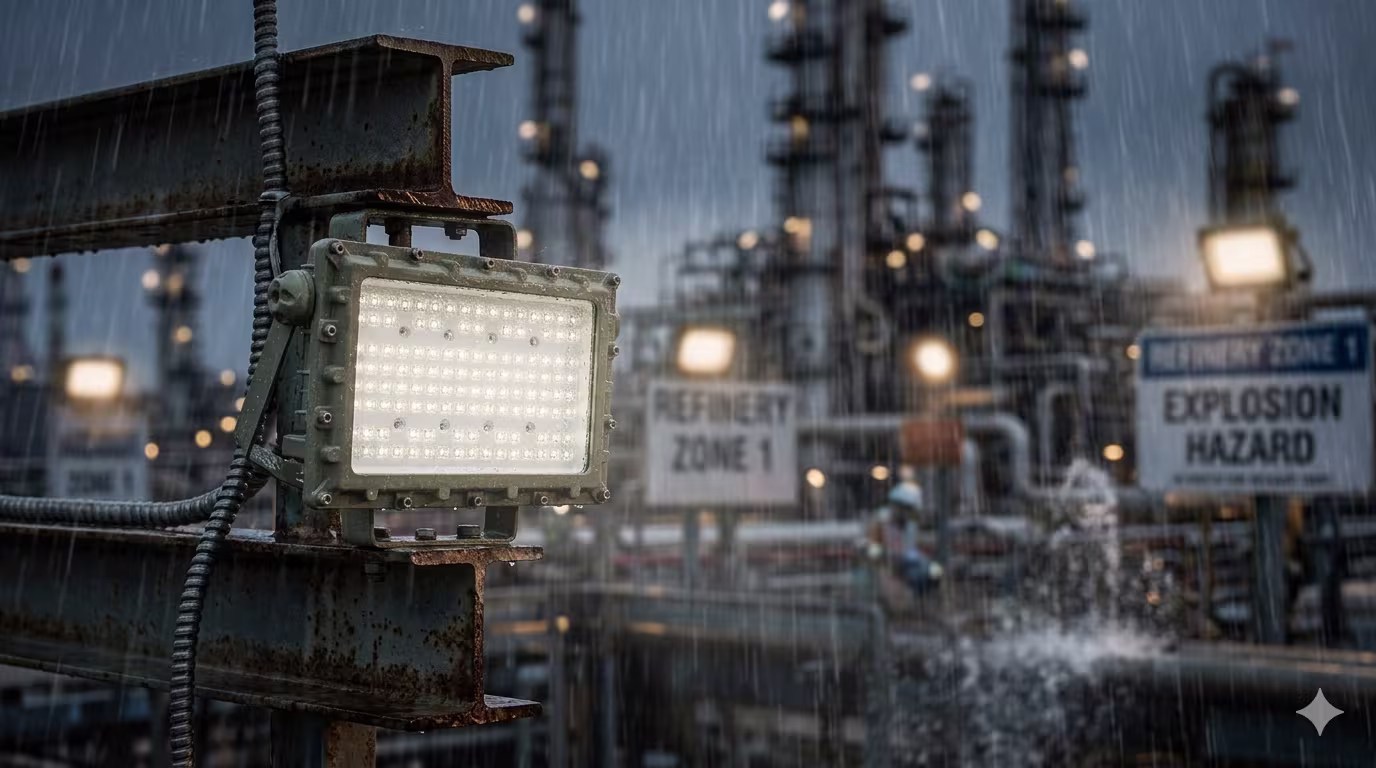

Delivering dependable performance in hazardous environments, the Tegralux GYD720 Series Explosion-Proof LED Light is engineered for safety, efficiency, and durability. With power options ranging from 30W to 240W and powered by advanced OSRAM German technology, it provides high-quality illumination with long service life. Certified to ATEX and IECEx standards, the GYD720 Series is suitable for Zone 1 and Zone 2 applications. Built with robust IP66 protection against dust and water ingress, it is backed by a 5-year fixture warranty for reliable, long-term operation.
Features:
- Zone 1&2, Zone 21&22
- Instant on crisp white light output
- High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
- Isolated LED compartment reduces temperature within driver housing
- Dense cooling fins design enhances airflow for greater heat dissipation
- 5 year fixture warranty
Specification
| Type | GYD7201 | GYD7202 | GYD7203 | GYD7204 |
|---|---|---|---|---|
| European (ATEX) Gas and Dust | II 2G Ex db eb IIC T 6 Gb II 2D Ex tb IlIC T80°C Db IP66 | II 2G Ex db eb IIC T 6 Gb II 2D Ex tb IlIC T80°C Db IP66 | II 2G Ex db eb IIC T 6 Gb II 2D Ex tb IlIC T80°C Db IP66 | II 2G Ex db eb IIC T 6 Gb II 2D Ex tb IlIC T80°C Db IP66 |
| Input voltage | 100-240VAC, 50-60Hz | 100-240VAC, 50-60Hz | 100-240VAC, 50-60Hz | 100-240VAC, 50-60Hz |
| Power consumption [W] | 20～80 | 100～120 | 150～200 | 210～240 |
| Luminaire efficiency [Lm /W] | 130 | 130 | 130 | 130 |
| Degree of protection | IP66 | IP66 | IP66 | IP66 |
| Size [mm] | 304*180*181 | 384*240*183 | 472*275*190 | 544*330*190 |
| Weight [kg] | 5.5 | 8.85 | 12.2 | 15.5 |
| Mounting Styles | Pendant; Ceiling; Wall Bracket;Stanchion | Pendant; Ceiling; Wall Bracket;Stanchion | Pendant; Ceiling; Wall Bracket;Stanchion | Pendant; Ceiling; Wall Bracket;Stanchion |
