Description

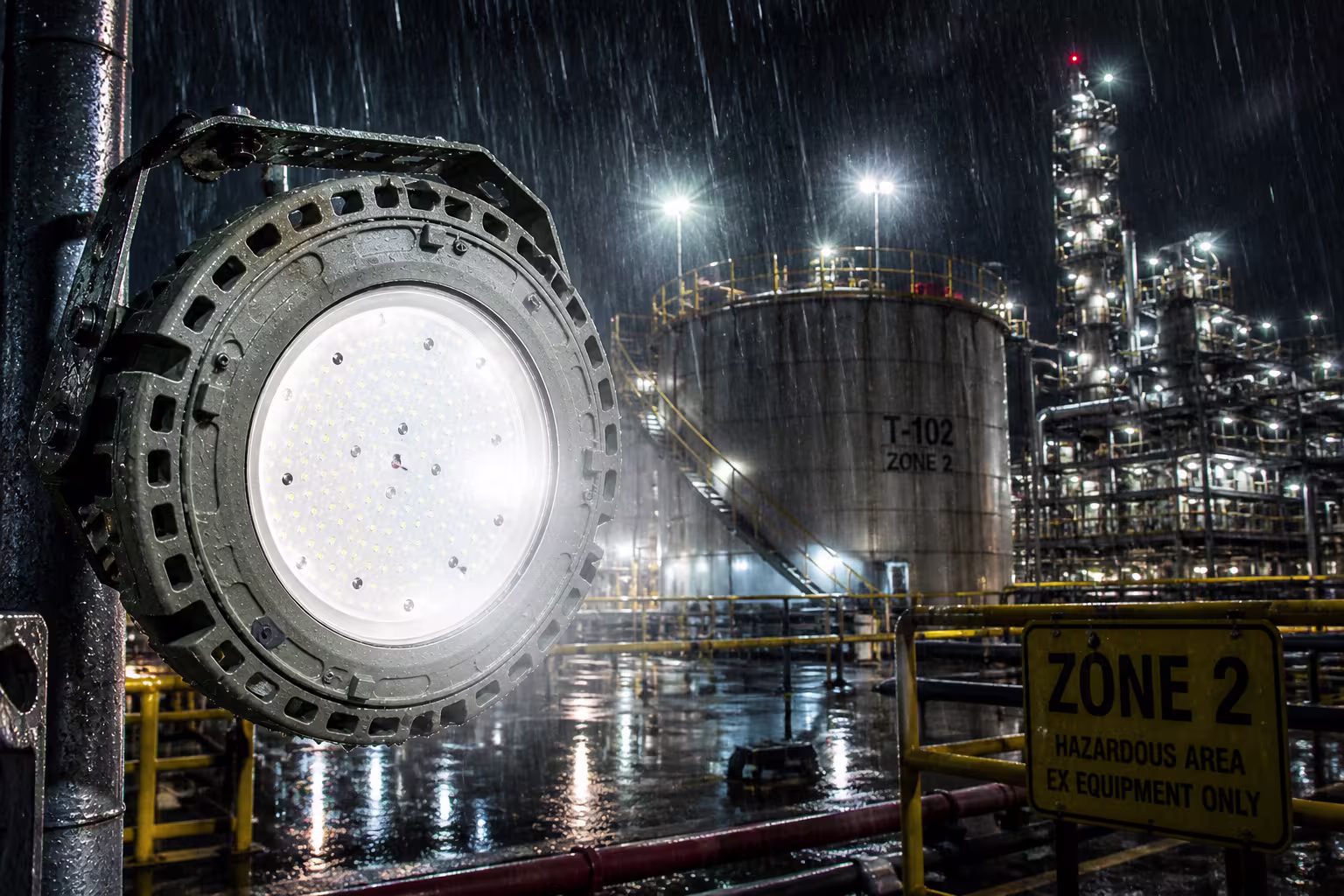

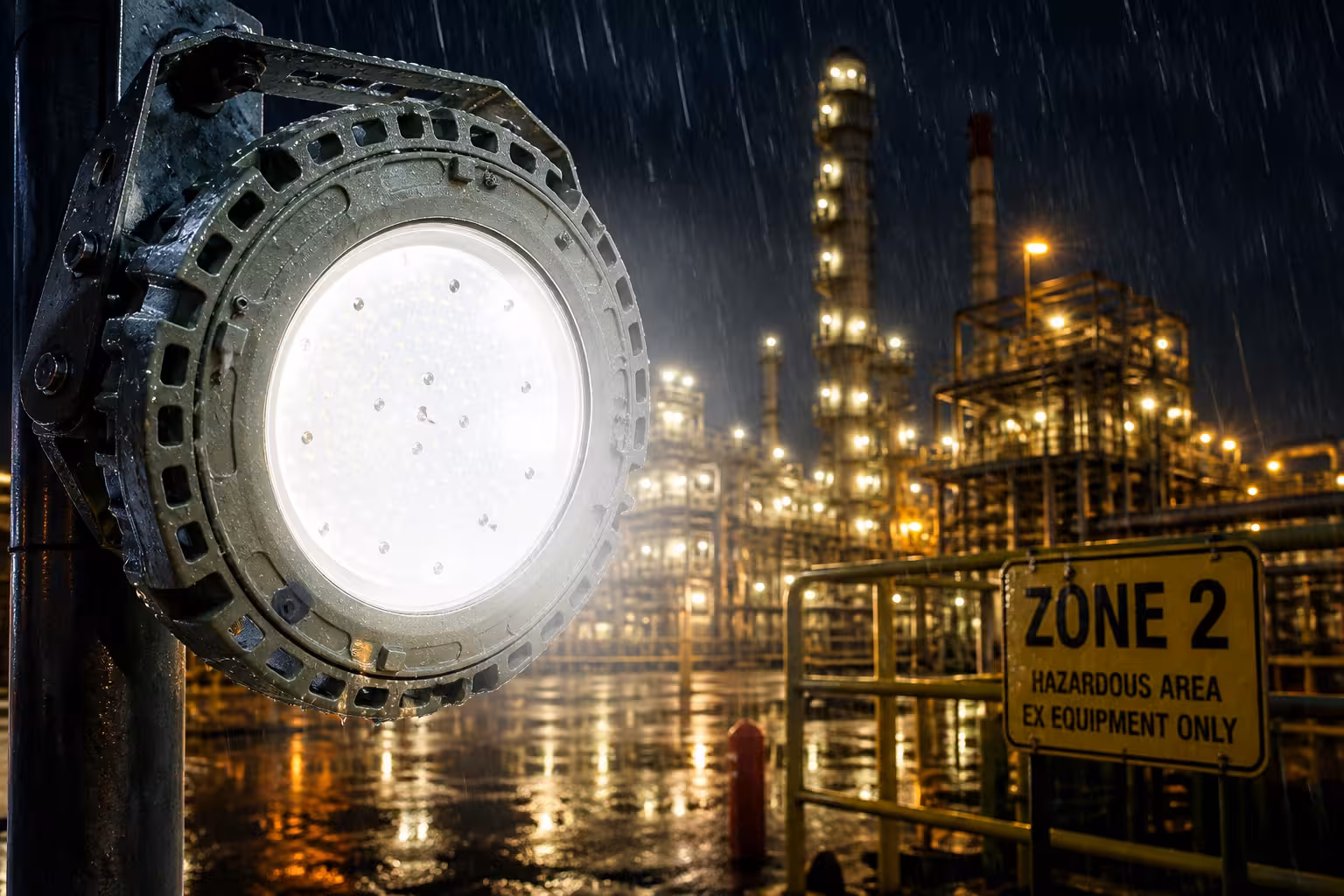

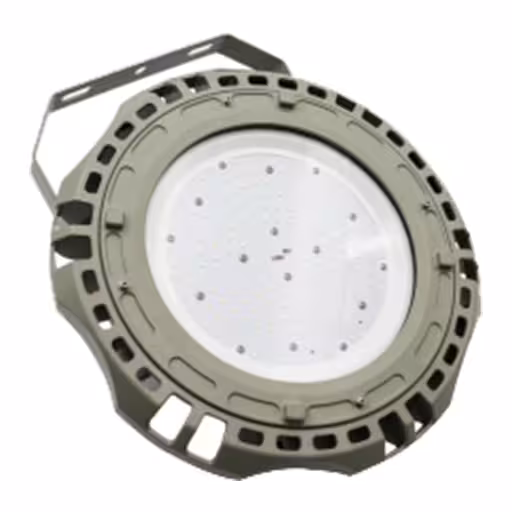

Built for reliability in hazardous environments, the Tegralux GYD620 Series Explosion-Proof LED Light delivers high-performance illumination with power options from 20W to 240W. Powered by advanced OSRAM German technology, it ensures superior efficiency and long service life. Certified to ATEX and IECEx standards, the GYD620 Series is suitable for Zone 1 and Zone 2 applications, featuring durable IP66 protection against dust and water ingress, and backed by a 5-year fixture warranty for added confidence.
Features:
- Zone 1&2, Zone 21&22
- Instant on crisp white light output
- High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
- Isolated LED compartment reduces temperature within driver housing
- Dense cooling fins design enhances airflow for greater heat dissipation
- 5 year fixture warranty
Specification
| Type | GYD6201 | GYD6202 | GYD6203 | GYD6204 |
|---|---|---|---|---|
| European (ATEX) Gas and Dust | II 2G Ex db eb IIC T6 Gb I I 2D Ex tb IlIC T80°C Db IP66 | II 2G Ex db eb IIC T6 Gb I I 2D Ex tb IlIC T80°C Db IP66 | II 2G Ex db eb IIC T6 Gb I I 2D Ex tb IlIC T80°C Db IP66 | II 2G Ex db eb IIC T6 Gb I I 2D Ex tb IlIC T80°C Db IP66 |
| Input voltage | 100-240VAC, 50-60Hz | 100-240VAC, 50-60Hz | 100-240VAC, 50-60Hz | 100-240VAC, 50-60Hz |
| Power consumption [W] | 20～70 | 80～120 | 150～200 | 210～240 |
| Luminaire efficiency [Lm/W] | 130 | 130 | 130 | 130 |
| Degree of protection | IP66 | IP66 | IP66 | IP66 |
| Size [mm] | 270*270*170 | 320*320*170 | 360*360*170 | 400*400*175 |
| Weight [kg] | 5.25 | 6.5 | 8.6 | 10.7 |

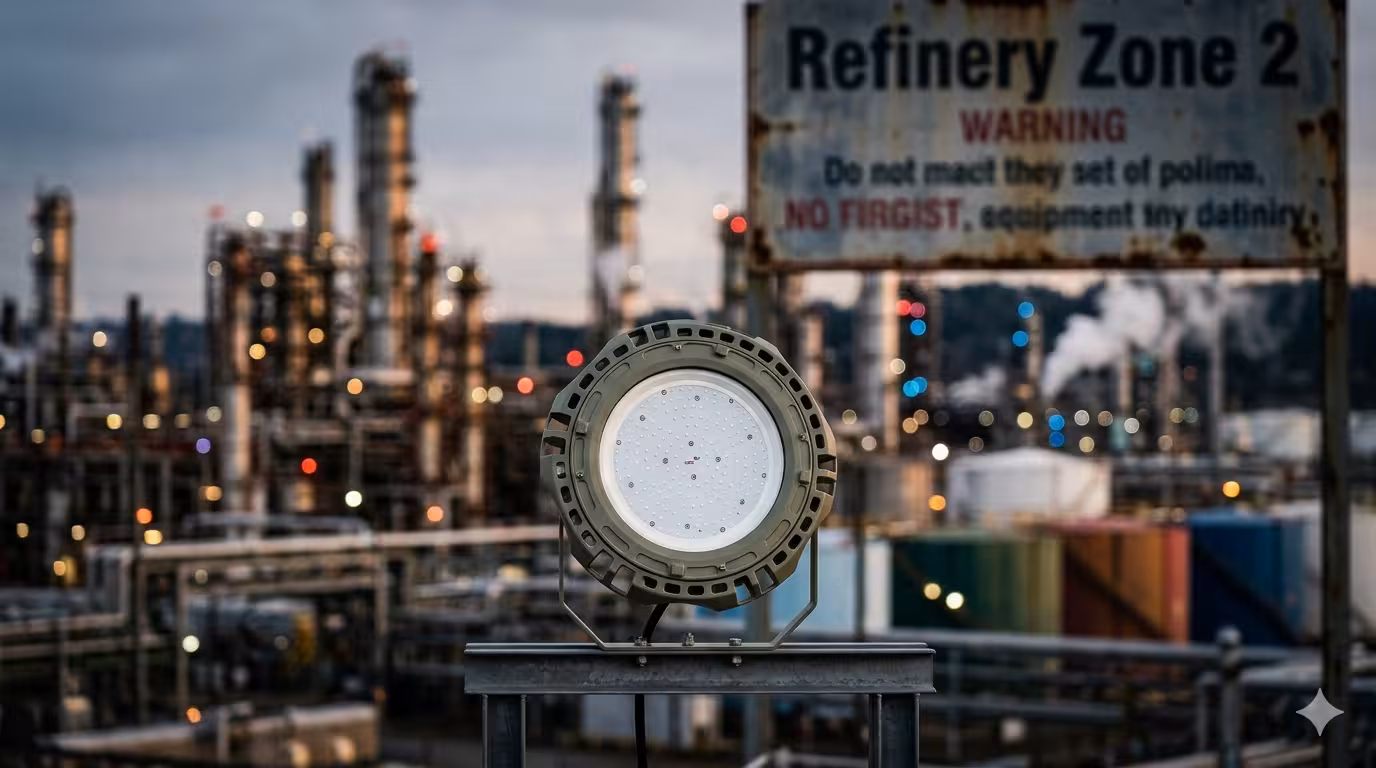

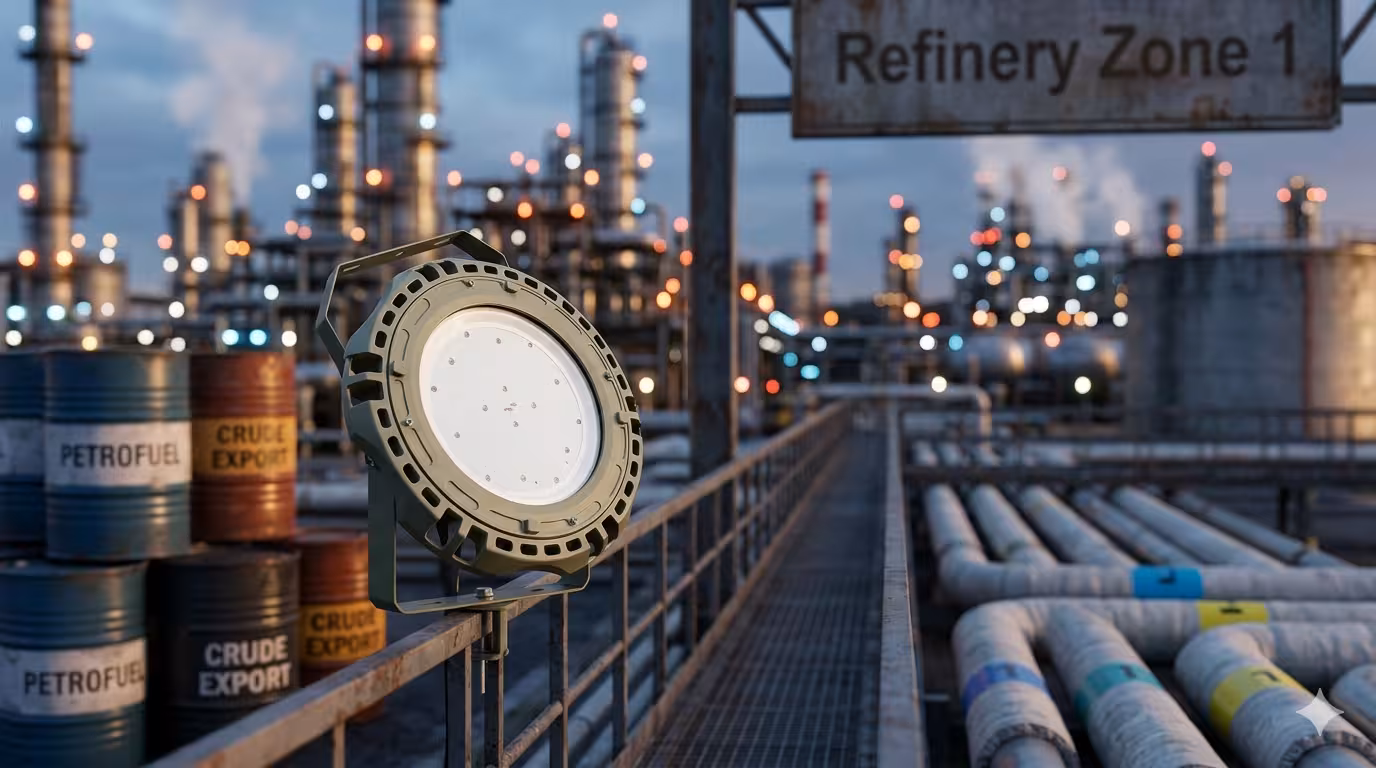

| Mounting Styles | Pendant; Ceiling; Wall Bracket; Stanchion | Pendant; Ceiling; Wall Bracket; Stanchion | Pendant; Ceiling; Wall Bracket; Stanchion | Pendant; Ceiling; Wall Bracket; Stanchion |
