Description

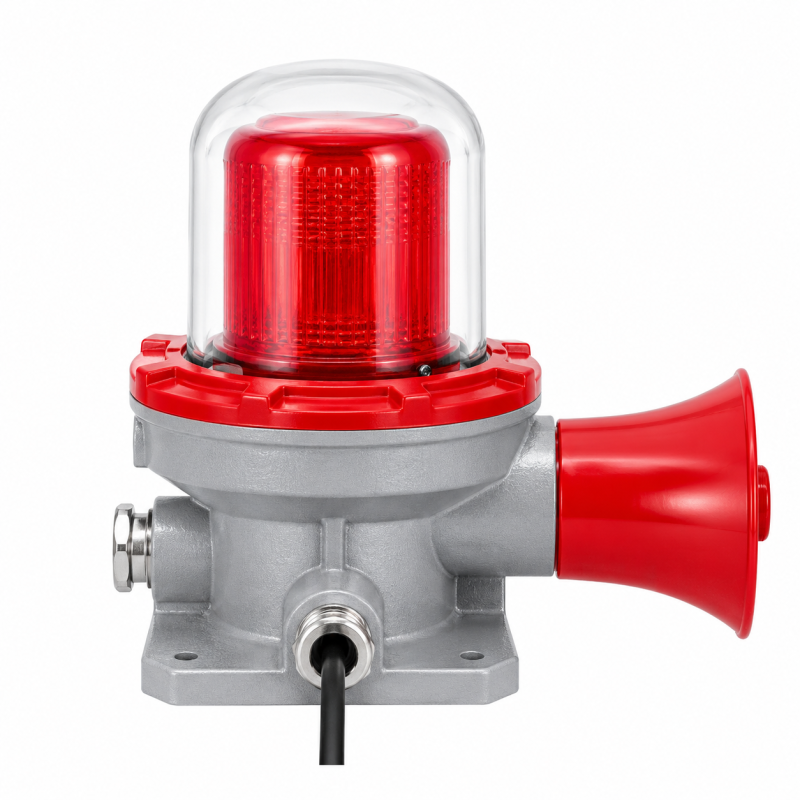

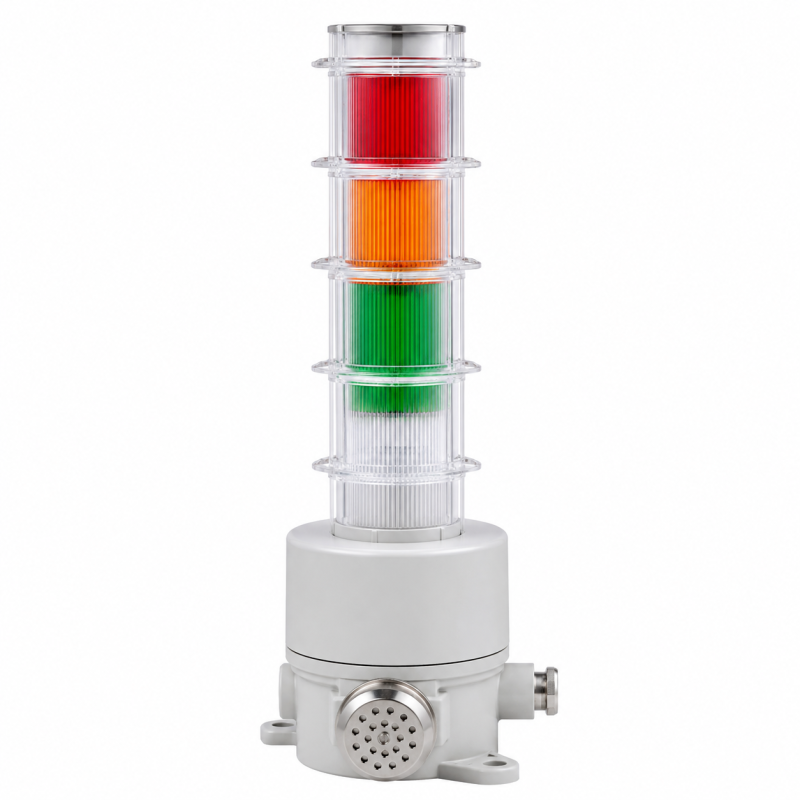

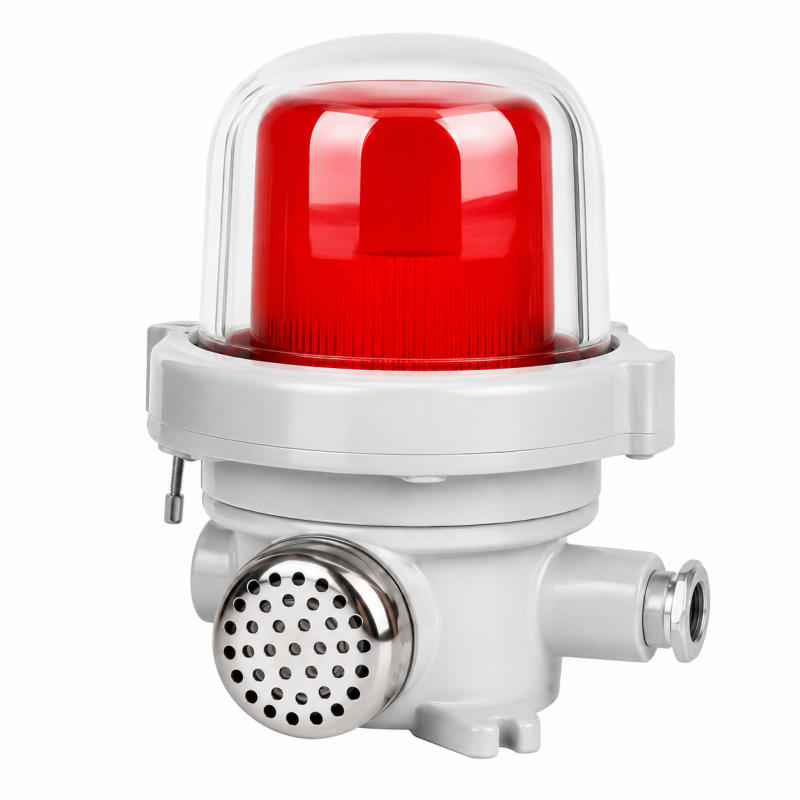

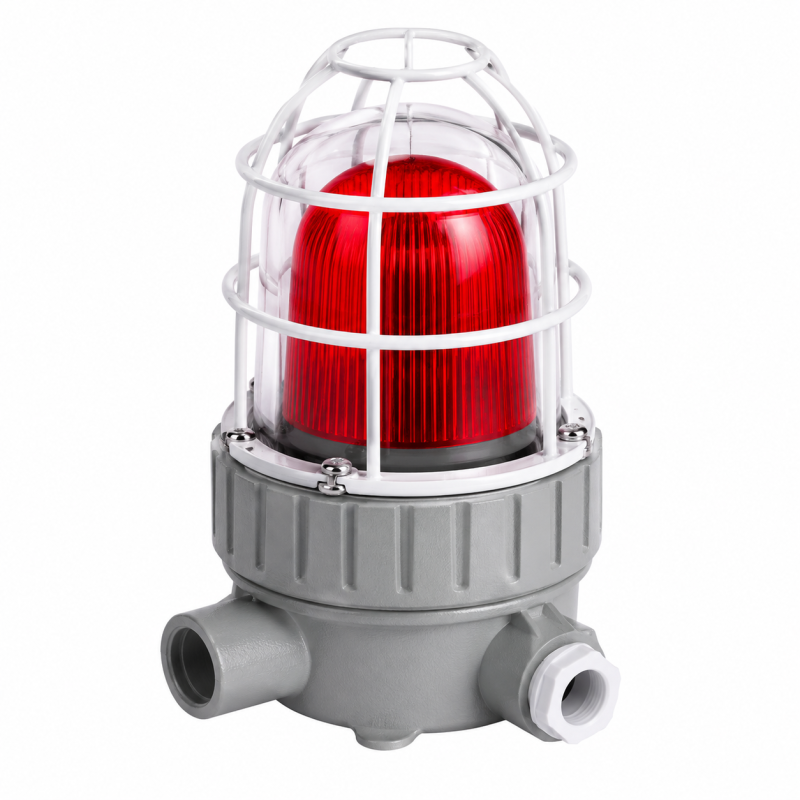

Strengthen safety in hazardous environments with the GYJ Series by Tegralux—an ATEX-certified explosion-proof siren built for reliable warning performance. Designed for Zone 1 & 2 and protected by IP66 standards, it delivers powerful alerts, ensuring safety, durability, and dependable operation in critical conditions.
Specification
| Type | GYJ-I | GYJ-II | GYJ-III | GYJ-IV |
|---|---|---|---|---|
| European (ATEX) Gas and Dust | II 2G Ex d e IIC Gb II 2D Ex tb Db | II 2G Ex d e IIC Gb II 2D Ex tb Db | II 2G Ex d e IIC Gb II 2D Ex tb Db | II 2G Ex d e IIC Gb II 2D Ex tb Db |
| Input voltage | AC220V/DC24V/ DC36V | AC220V/DC24V/ DC36V | AC220V/DC24V/ DC36V | AC220V/DC24V/ DC36V |
| Degree of protection | IP66 | IP66 | IP66 | IP66 |
| Power consumption [W] | 3 | 5 | 10 | 5 |
| Sound Intensity [dB] | 90 | 120 | 180 | 120 |
| Flash Frequency | 150 times/Min | 150 times/Min | 150 times/Min | 150 times/Min |
| Color | Red/Yellow/Blue/Green | Red/Yellow/Blue/Green | Red/Yellow/Blue/Green | Red/Yellow/Blue/Green |
| Weight | 1.8 | 2.7 | 3.7 | 2.5 |
| Mounting Styles | Wall Bracket; Base | Wall Bracket; Base | Wall Bracket; Base | Wall Bracket; Base |
