Description

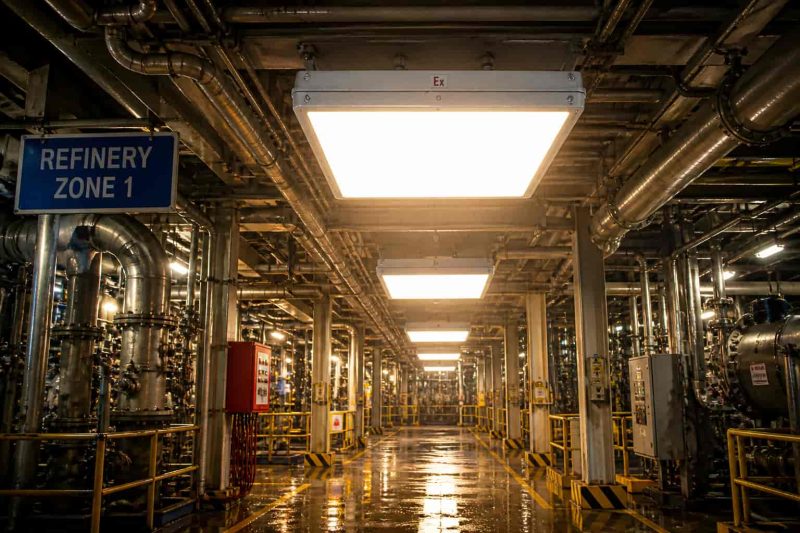

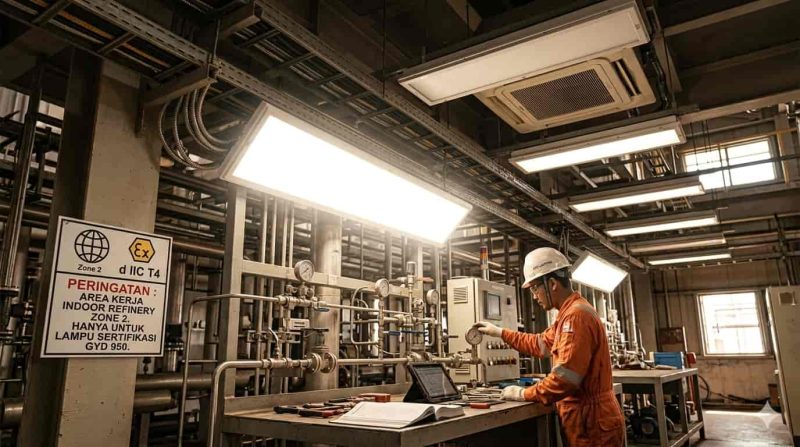

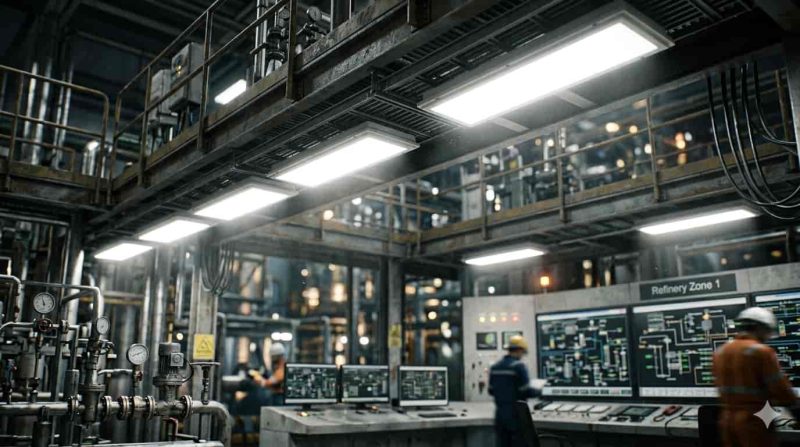

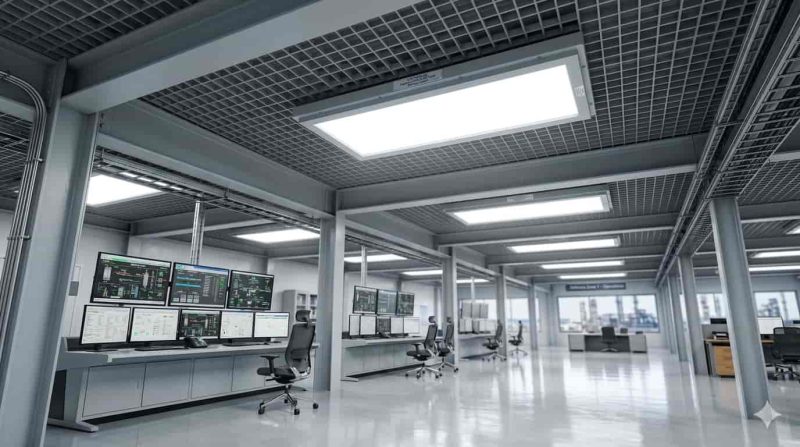

Engineered for safety and performance in hazardous environments, the Tegralux GYD950 Series Explosion-Proof LED Light delivers reliable illumination with power options from 30W to 240W. Powered by advanced OSRAM German technology, it ensures high efficiency and long service life. Certified to ATEX and IECEx standards, the GYD950 Series is designed for safe use in Zone 1 and Zone 2 areas. Built with rugged IP66 protection against dust and water ingress, it is backed by a 5-year fixture warranty, providing dependable, long-term performance in demanding industrial applications.
Features:
- Zone 1&2, Zone 21&22
- Instant on crisp white light output
- High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
- Isolated LED compartment reduces temperature within driver housing
- Dense cooling fins design enhances airflow for greater heat dissipation
- 5 year fixture warranty
Specification
| Type | GYD9501 | GYD9502 | GYD9503 | GYD9504 |
|---|---|---|---|---|
| European (ATEX) Gas and Dus | II 2G Ex db eb IIC T 6 Gb II 2D Ex tb IlIC T80°C Db IP66 | II 2G Ex db eb IIC T 6 Gb II 2D Ex tb IlIC T80°C Db IP66 | II 2G Ex db eb IIC T 6 Gb II 2D Ex tb IlIC T80°C Db IP66 | II 2G Ex db eb IIC T 6 Gb II 2D Ex tb IlIC T80°C Db IP66 |
| Input voltage | 100-240VAC, 50-60Hz | 100-240VAC, 50-60Hz | 100-240VAC, 50-60Hz | 100-240VAC, 50-60Hz |
| Power consumption [W] | 12 | 24 | 48 | 120 |
| Luminaire efficiency [Lm/W] | 100-110 | 100-110 | 100-110 | 100-110 |
| Degree of protection | IP66 | IP66 | IP66 | IP66 |
| Size [mm] | 325*325 | 625*325 | 625*625 | 1225*325 |
| Mounting Styles | Ceiling,Embedded | Ceiling,Embedded | Ceiling,Embedded | Ceiling,Embedded |
